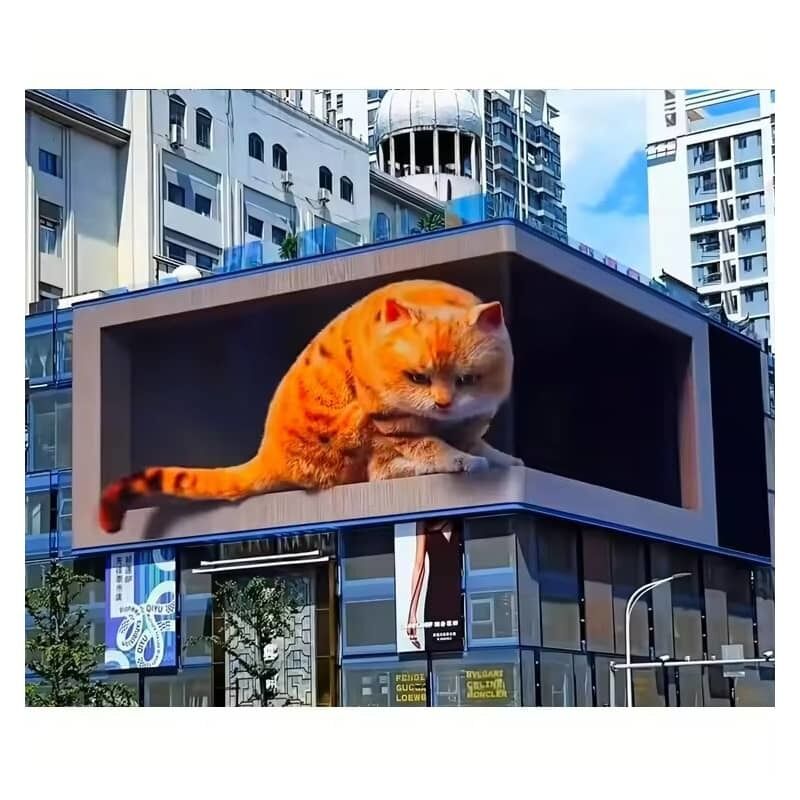

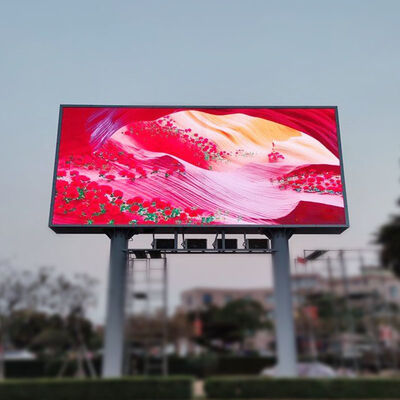

IP65 Waterproof High-Brightness P6 P8 P10 LED Screen for Shopping Malls and Outdoor Advertising Outdoor 3D Cured LED Screen
Datos del producto:
| Lugar de origen: | Cantón, China |
| Nombre de la marca: | LED King |
| Certificación: | CE FCC ISO |
| Número de modelo: | Exterior P6 P8 P10 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | $336 |
| Detalles de empaquetado: | caja de madera |
| Tiempo de entrega: | 15 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Según sus necesidades |
|
Información detallada |
|||
| Sistema de control: | Estrella de novas | Esperanza de vida: | 100000 horas |
|---|---|---|---|
| Beer: | Chipone ICN2153 | Material del gabinete: | Hierro impermeable |
| Peso del panel: | 40 kg | Fuente de alimentación: | CA 110 V/220 V-5 V 60 A. |
| Resaltar: | IP65 waterproof LED display,high-brightness P6 LED screen,outdoor 3D cured LED screen |
||
Descripción de producto
IP65 Waterproof High-Brightness P6 P8 P10 LED Screen
Professional outdoor LED display solution for shopping malls, advertising, and commercial applications featuring 3D cured technology.
Technical Specifications
| Module Specifications | |
|---|---|
| Module Size | 320mm(W) * 160mm(H) |
| Pixel Pitch | 6mm / 8mm / 10mm |
| Pixel Density | 27777dot/㎡ (P6) / 15625dot/㎡ (P8) / 10000dot/㎡ (P10) |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD3535 |
| Max Power Consumption | 45W |
| Panel Weight | 0.55KG |

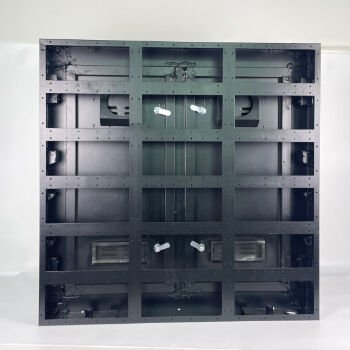

| Cabinet Specifications | |
|---|---|
| Cabinet Size | 960 * 960mm |
| Quantity of Panel | 18pcs |
| Material | Waterproof Iron cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V60A |
| Technical Signal Index | |
|---|---|
| Brightness | 4500-5500 cd/㎡ |
| Contrast Ratio | 4000:1 |
| Refresh Frequency | 3840-7680HZ/S |
| Operating Temperature | -20℃ ~ 60℃ |
| IP Protective Index | IP65 |
| Life Span | 100,000 Hours |
Core Features and Advantages
- High brightness: Resistant to strong sunlight with clear visibility under direct light conditions
- Rugged construction: IP65 waterproof and dustproof rating for harsh outdoor environments
- Wide viewing angles: 170°/120° viewing angles ensure excellent visibility from all directions
- Modular design: Quick replacement of faulty modules reduces maintenance time and costs
- Vibrant display: 16-bit color depth delivers rich, dynamic visual content
- Remote management: Network-enabled cluster control for real-time content updates
Application Scenarios
- Commercial street advertising and shopping mall displays
- Hotel/corporate entrance screens and image walls
- Event main screens for concerts and product launches
- Real estate sales office information displays
- Building exterior wall advertising
- Highway/main road billboards
- City square/stadium large screens
- Transportation hub information displays
Certifications
CE
FCC
ISO
Packaging
Installation Case
Quiere saber más detalles sobre este producto
