Professional Indoor LED Display Screen For Meeting Room Projects Indoor Led Advertising Screen Indoor Led Display Panel
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | LEDKING |
| Certificación: | CE FCC ISO |
| Número de modelo: | P3.076 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 10pc |
|---|---|
| Precio: | $324/pc |
| Detalles de empaquetado: | caja de madera contrachapada |
| Tiempo de entrega: | 15 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 10 piezas 15 días |
|
Información detallada |
|||
| Dimensión del panel: | Las medidas de seguridad se aplicarán en el caso de las aeronaves de pasajeros que no cumplan los re | Densidad de píxeles: | 105688 puntos/m2 |
|---|---|---|---|
| Especificación LED: | SMD2121 | Tamaño del gabinete: | 960 mm*960 mm |
| Conducir ic: | CIE 1065 | Tasa de escaneo: | 1/26 s |
| Resaltar: | professional indoor LED display screen,meeting room LED advertising screen,indoor LED display panel |
||
Descripción de producto
Professional Indoor LED Display Screen
High-quality LED display panel designed for meeting rooms and indoor advertising applications, offering superior image quality and reliability.
Module Specifications
| Parameter | Value |
|---|---|
| Panel Dimension | 320mm(W) * 160mm(H) |
| Pixel pitch | 3.076mm |
| Pixel Density | 105688 dot/m² |
| Pixel configuration | 1R1G1B |
| LED specification | SMD2121 |
| Pixel resolution | 104dot * 52 dot |
| Max power consumption | 20W |
| Panel weight | 0.45KG |
Cabinet Specifications
| Parameter | Value |
|---|---|
| Cabinet size | 960mm*960mm |
| Cabinet Resolution | 312 dot * 312 dot |
| Quantity of panel | 18pcs |
| Hub connecting | HUB75-E |
| Material | Simple Iron cabinet |
| Maintenance Method | Front/Back service |
| Best viewing angle | 140/120 |
| Screen power supply | AC110V/220V - 5V40A |
| Max power capacity | 651 W/m² |
| Average power consumption | 200W/m² |
| Panel weight | 26KG |
Technical Signal Index
| Parameter | Value |
|---|---|
| Driving IC | ICN 1065 |
| Scan Rate | 1/26S |
| Refresh frequency | 3840 HZ/S |
| Brightness | 800-1000cd/m² |
| Life span | 100000Hours |
| Display color | 4096*4096*4096 |
| Contrast Ratio | 4000:1 |
| Control distance | <100M |
| Best viewing distance | 3-30M |
| Operating temperature | -10C°~45C° |
| Operating Humidity | 10-90 % |
| IP protective index | IP43 |

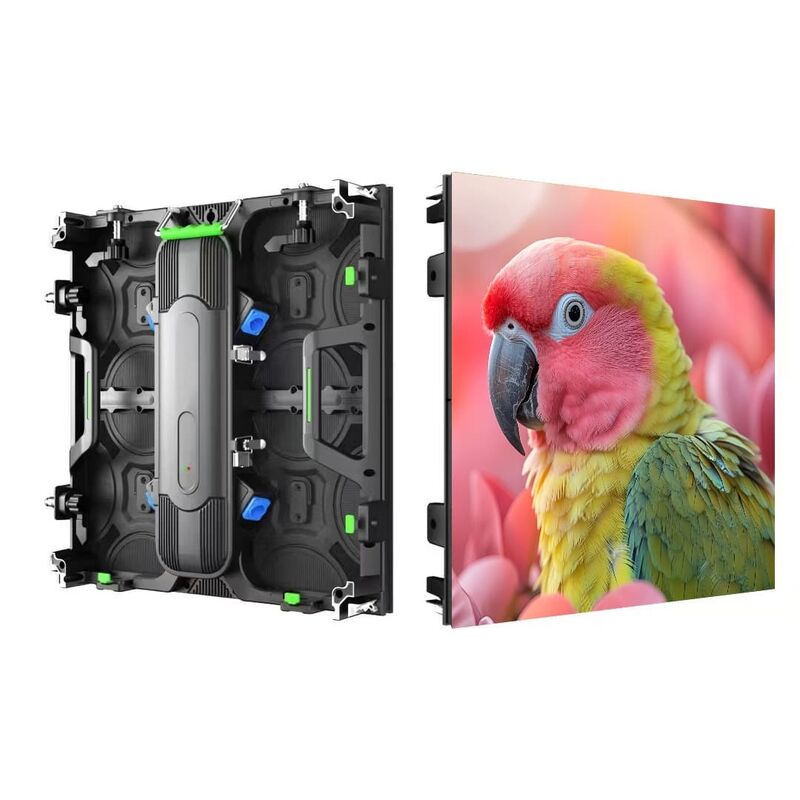

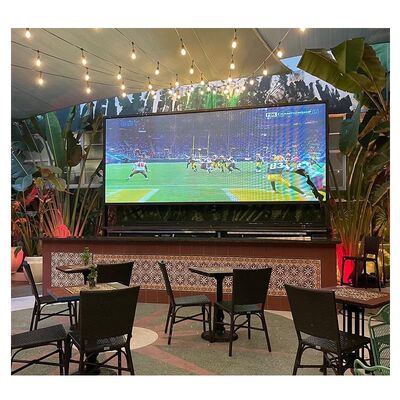

Product Images
Quiere saber más detalles sobre este producto
